    Semi Automatic Solder Paste SMT Screen Printer High Precision Up To 0.2mm

    Ask Lasest Price
    Brand Name : Infinite
    Model Number : OB-P618, OB-P618A, OB-P618E
    Price : USD
    Payment Terms : 20% deposit - 80% before delivery
    Supply Ability : 1 unit
    Delivery Time : 7 to 10 working days
    • Product Details
    • Company Profile

    Semi Automatic Solder Paste SMT Screen Printer High Precision Up To 0.2mm

    Semi Automatic Solder Paste SMT Screen Printer High Precision Up To 0.2mm

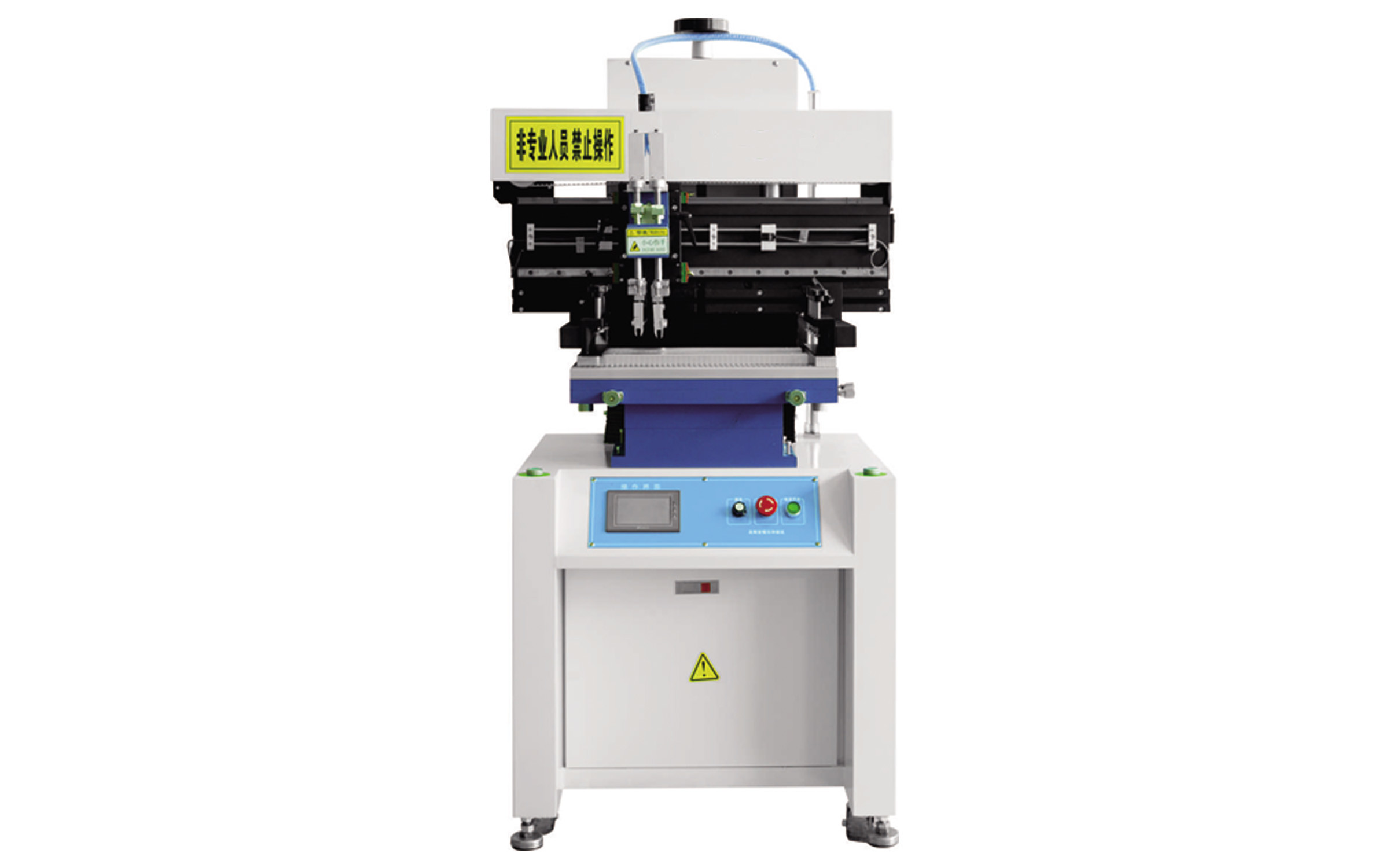

    INFINITE™ Semi-Automatic Solder Paste SMT Printer Machine is a high-precision Solder Paste Printer. This precise PCB Solder Paste Printer is suitable for the double-sided PCB printing process. INFINITE™ Semi-Automatic Solder Paste is capable of printing up to 0.2mmlC - making this PCB Semi-Auto Printer a highly reliable and precise solder paste printer. Scrape angle, pressure, travel length are adjustable and the X/Y/Z axis movement is extraordinarily precise. INFINITE™ Series Semi-Automatic Solder Paste SMT Printer Machine is available in 3 different models for different Stencil and PCB sizes. Please contact our sales team to learn more about INFINITE™ Series Semi-Automatic Solder Paste SMT Printer Machine.


    Features:

    • High precision slide rail printing, precise up to 0.2mmlC
    • PLC + touchscreen + frequency inverter controller
    • Magnetic thimble + honeycomb board platform, more suitable for double sides PCB
    • Scrape angle, pressure, travel length are adjustable
    • X/Y/Z axis can fine turning, high precise
    TECHNICAL PARAMETERS
    DescriptionSolder paste printing for PCB board
    Power supply1PAC220V50/60HZ
    Positioning modeOutside / Reference hole
    Printing Speed0-8000mm/Min

    SPECIFICATIONS
    ModelOB-P618OB-P618AOB-P618E
    Dimension (L*W*H MM)850*670*15501005*670*15501650*670*1550
    Platform size (mm)320*400320*600320*1300
    PCB size (mm)300*400300*550300*1250
    Stencil size (mm)550*680550*835550*1480
    PCB thickness (mm)0-1000-1000-100
    Platform height (mm)880880880
    Repeatability(+/・) 0.01mm(+/-) 0.01mm(+/-) 0.01mm
    Weight (KG)Approx.270KGSApprox.290KGSApprox.380KGS

    Semi Automatic Solder Paste SMT Screen Printer High Precision Up To 0.2mm
