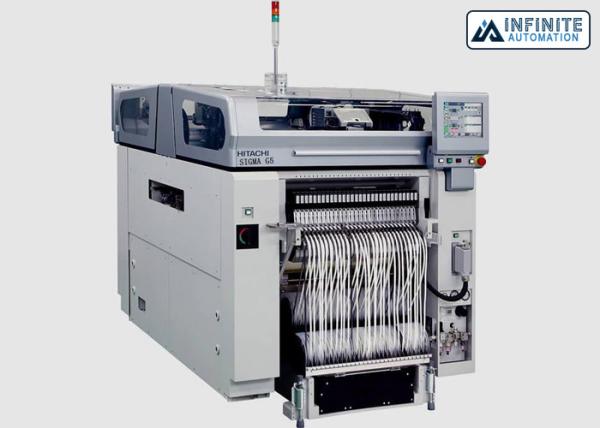

Hitachi SIGMA G5 Pick And Place Mechanism Original And Used
Hitachi SIGMA G5 Pick And Place Machine, Original And Used SMT
Machine
Hitachi SIGMA Compact Premium modular mounter achieves high
productivity and high quality with functions such as direct drive
head, overdrive motion detection apparatus, and linear motor-driven
XY beams. Hitachi SIGMA-G5 Pick and Place Machine allows you to
quickly change the head units and tray units so that you can
flexibly handle changes of component types. This SMT Chip mounter
offers significant improvement in operations and maintenance.
Hitachi Mounter SIGMA G5 Features:
Operating system and display Windows XP; color LCD touch panel
display series SIGMA G5 module placement machine Hitachi series
direct-drive module Mounter equipped with 15 nozzles direct-drive
head, linear motor drive XY axis, do not stop a recognition, Y-axis
optimization adjustment to achieve a high yield of 65000CPH.
Concept:
Overdrive motion
Ultimate access
Super wide range DDH V5
Smart operation
Voluntary line operation
Wide-open &Easy access
Quick exchange
Auto changeover PP type
LISA
Feeder hot-swap
Chip theory speed 84500chip
Placement range 1005 (0402) -32mmIC
Placement accuracy plus or minus 0.03mm
Power 1.80kWh
Hitachi SIGMA G5 parameters
Mounting head structure of high-speed head 2 placement head/module,
15 nozzle/placement head
Universal head 2 placement head/module, 3 nozzle/placement head
High-speed head 70,000 cph (1 module)
Universal head 14,500cph (1 module)
High precision head 40um with 30um head
Applicable components Length and width High-speed head 0.4 x 0.2mm
~ 44 x 44mm
Universal head 1.0 x 0.5 ~ 55 x 55mm 150 x 26mm
The thickness of high-speed head 12.7mm universal head 25.4mm
Power AC3 phase 200V ± 20V 50 / 60Hz
Apparent power is about 7.4 kVA
Power consumption per hour is about 1.80kWh
Ambient temperature 20 ± 10
Ambient humidity 30 ~ 80%
Air pressure 0.45 ~ 0.69Mpa (4.6 ~ 7Kgf / cm2)
Vacuum pressure -93kPa
Floor load-bearing 1,009kg
