I Pulse M10 SMT Placement Machine 30000CPH Feeder Platform 72 Positions

I-Pulse M10 Pick and Place Machine, 30,000 CPH, Original and Used SMT Machines

The M10 has all the features of its superior but with half the feeder capacity , the M20 represents the next generation in SMT Automation. Applying the same range of interchangeable feeder banks and tray handlers, the M10 makes an excellent complement to existing I-Pulse lines and a highly flexible mounter for the placement of fine pitch and tray feed parts.

The greater PCB handling permits production capability that has never before been seen in a compact footprint mounter. The increased component height and overall component dimension capability expand the range of placeable components, making the M10 one of the most flexible and accomplished machines ever presented from iPulse.

Available in 4 and 6 head configurations, the M10 can be custom-tailored to your needs. A maximum of 72 can be fixed on the feeder banks or on changeable banks of 36 feeders each making a fast and easy changeover. The 36 feeders' changeable rear bank can be swapped with a 40 tray changer. The M10 comes with new standard features such as Force Control Function, allowing adjustment and measurement of the downward force applied to components being placed from 5N to 60N. Placement verification is another standard feature using a downward-looking camera, eliminating the need for a separate after placement inspection machine

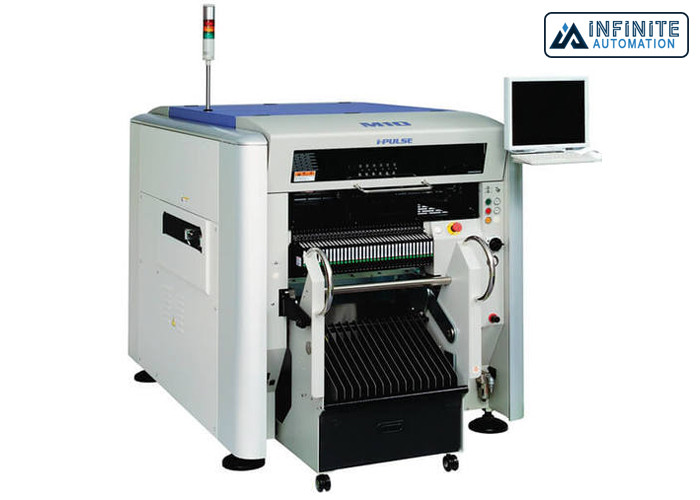

I-Pulse M10 Pick and Place Machine

• Optimum speed: 30,000CPH
• Accuracy: CHIP +/- 0.040mm IC +/- 0.025mm
• Feeder platform: 72 positions

Specifications

• Feeder platform: 72 positions
• Maximum PCB size: L 740mm x W510mm
• Applicable components: 01005 (0402mm) ~120mm x 90mm (30mm height) BGA,
• CSP, oddform, connectors etc
• Optimum speed: 30,000CPH
• Accuracy: CHIP +/- 0.040mm IC +/- 0.025mm

Infinite Automation Co., Ltd was established in 2006 and is now one of the world's leading suppliers of high-quality AI and SMT Factory Automation Machines, Equipment, and Production Solution Products. As an export company, we always aim to provide high-quality products to customers in Asia, America, and Europe at very competitive prices. With the long-term support and help of global customers, we are able to expand our business in a short period of time.

Our factory is located in Fuyong, China, with 800 square meters of facilities, a two-story warehouse building. Our company focuses on sales and distribution of Factory Automation Machines and Equipment.

Our factory is consisted of about 40 engineers and professional staff that handle R&D, Production, Quality Assurance, and Sales and Marketing Team that ensures that all products we deliver are well inspected and pass high-quality standards.
