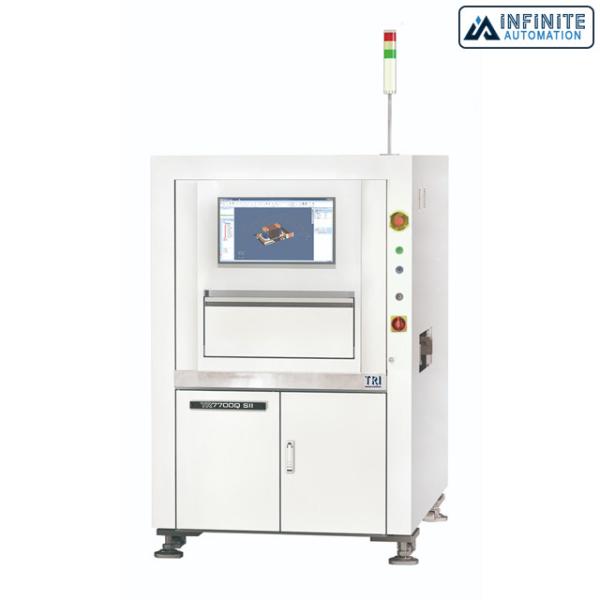

    Industrial Use TR7700Q SII 3D AOI Inspection Machine Original and Used

    Ask Lasest Price
    Brand Name : TRI
    Model Number : TR7700Q SII
    Price : USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 10 units
    Delivery Time : 1 to 5 working days
    • Product Details
    • Company Profile

    Industrial Use TR7700Q SII 3D AOI Inspection Machine Original and Used

    Industrial Use TR7700Q SII 3D AOI Inspection Machine Original And Used


    TR7700Q SII Ultra High Precision 3D AOI, Pre-owned and Reconditioned AOI machines


    The TR7700Q SII is powered by TRI's Smart Programming with auto-learning functionalities, flexible inspection algorithms, and metrology capabilities for exact measurements and data exchange for Smart Factory applications. The advanced mechanical stability The TR7700Q SII has a Higher Accuracy, and improved Gauge R&R with Stop-and-Go Imaging Technology.


    Features:


    • Industry-Leading Inspection Speed, up to 57 cm2/sec
    • Multiple 3D Technologies: Zero-escapes Inspection
    • High Accuracy Inspection with Improved GR&R


    Specifications:


    Optical System

    Imaging MethodStop-and-Go
    Top Camera12 MP High Speed Camera
    Angle CameraN/A
    Imaging Resolution5.5 µm *, 10 µm, 12 µm, 15 µm (factory setting)

    * Available for TR7700Q SII & TR7700Q SII DL
    LightingMulti-phase True Color LED
    3D TechnologyQuad Digital Fringe Projectors
    Max. 3D Range@ 5.5 μm: 20 mm
    @ 10 μm: 40 mm
    @ 12 μm: 40 mm
    @ 15 μm: 40 mm

    Inspection Performance

    Imaging Speed@ 5.5 μm: 7.8 cm²/sec
    @ 10 μm: 25 cm²/sec
    @ 12 μm: 37 cm²/sec
    @ 15 μm: 57 cm²/sec

    Motion Table & Control

    X-Axis ControlBallscrew + AC Servo with Motion Controller
    Y-Axis ControlBallscrew + AC Servo with Motion Controller
    Z-Axis ControlBallscrew + AC Servo with Motion Controller
    X-Y Axis Resolution1 μm

    Board Handling

    Max PCB SizeTR7700Q SII: 510 x 460 mm
    TR7700LQ SII: 765 x 610 mm
    TR7700Q SII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane. Optional: 510 x 680 mm
    PCB Thickness0.6-5 mm
    Max PCB WeightTR7700Q SII: 3 kg. Optional: 5kg
    TR7700LQ SII: 3 kg (6.61 lb). Optional: 5 kg (11.02 lb) / 12 kg (26.46 lb)
    TR7700Q SII DL: 3 kg. Optional: 5kg
    Top Clearance@ 5.5 μm: 20 mm
    @ 10 μm: 50 mm
    @ 12 μm: 50 mm
    @ 15 μm: 50 mm
    Bottom Clearance40 mm
    Edge Clearance3 mm. Optional: 4 mm / 5 mm
    ConveyorInline Height: 880 – 920 mm

    * Optional: 940-965 mm (SMEMA compatible)

    Inspection Functions

    ComponentMissing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component
    SolderSolder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination

    Dimensions

    WxDxHTR7700Q SII: 1100 x 1720 x 1710 mm
    TR7700LQ SII: 1365 x 1720 x 1710 mm
    TR7700Q SII DL: 1100 x 1820 x 1710 mm

    Note: not including signal tower, signal tower height 515 mm
    WeightTR7700Q SII: 910 kg
    TR7700LQ SII: 1025 kg
    TR7700Q SII DL: 960 kg
