    High Precision TR7500QE 3D AOI Automated Inspection Equipment

    Ask Lasest Price
    Brand Name : TRI
    Model Number : TR7500QE
    Price : USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 10 units
    Delivery Time : 1 to 5 working days
    • Product Details
    • Company Profile

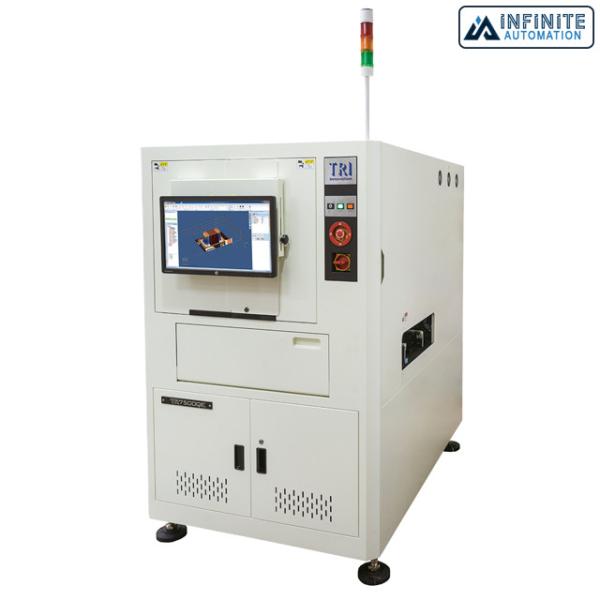

    High Precision TR7500QE 3D AOI Automated Inspection Equipment

    High Precision TR7500QE 3D AOI Automated Inspection Equipment


    TR7500QE Ultra High Precision 3D AOI, 3D Automated Inspection Machine (AOI), Pre-owned and Reconditioned AOI machines


    The TR7500QE AOI offers high-performance 3D solder and assembly inspection by combining the next-generation multi-angle 2D and 3D technologies based on 4-way adaptive digital fringe pattern projection and 4 side-view cameras. The latest inspection software ensures quick CAD-based programming and features fully customizable templates.


    Features:


    • Multi-angle 2D + 3D Coverage
    • 4-way Digital Fringe Projectors
    • 4 Side View Cameras
    • Up to 40 mm 3D Height Range
    • High-Speed CoaXPress Imaging
    • Optional 3D Laser Module


    Specifications:


    Optical System

    Imaging MethodStop-and-Go Imaging
    Top Camera12 Mpix
    Angle Camera6.5 Mpix
    Imaging Resolution10 µm, 15 µm (factory setting)
    LightingMulti-phase true color LED, Coaxial lighting
    3D TechnologyQuad Digital Fringe Projectors
    Max. 3D Range0-40 mm

    Inspection Performance

    Imaging Speed12 Mpix@ 10 µm: 13.5 cm²/sec
    12 Mpix@ 10 µm: 23 cm²/sec with optional CoaXPress
    12 Mpix@ 15 µm: 30 cm²/sec
    12 Mpix@ 15 µm: 50 cm²/sec with optional CoaXPress

    Note: The inspection time will vary depending on the configuration

    Motion Table & Control

    X-Axis ControlBallscrew + AC-servo controller (Linear motor optional)
    Y-Axis ControlDual driven ballscrew + AC-servo controller
    Z-Axis ControlBallscrew + AC-servo controller
    X-Y Axis Resolution1 µm

    Board Handling

    Max PCB SizeTR7500QE: 510 x 460 mm
    TR7500L QE: 660 x 610 mm
    TR7500QE DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
    PCB Thickness0.6-5 mm
    Max PCB Weight3 kg
    Top Clearance50 mm
    Bottom Clearance40 mm
    Edge Clearance3 mm [5 mm optional]
    ConveyorInline
    Height: 880 – 920 mm

    * SMEMA Compatible

    Inspection Functions

    ComponentMissing
    Tombstoning
    Billboarding
    Polarity
    Rotation
    Shift
    Wrong Marking (OCV)
    Defective
    Upside Down
    Extra Component
    Foreign Material
    Lifted Component
    SolderSolder Fillet Height
    Solder Volume %
    Excess Solder
    Insufficient Solder
    Bridging
    Through-hole Pins
    Lifted Lead
    Golden Finger
    Scratch/Contamination

    Dimensions

    WxDxHTR7500QE: 1100 x 1730 x 1750 mm
    TR7500L QE: 1250 x 1880 x 1750 mm
    TR7500QE DL: 1100 x 1830 x 1750 mm

    Note: not including the signal tower, signal tower height 520 mm
    WeightTR7500QE: 920 kg
    TR7500L QE: 1170 kg
    TR7500QE DL: 950 kg
