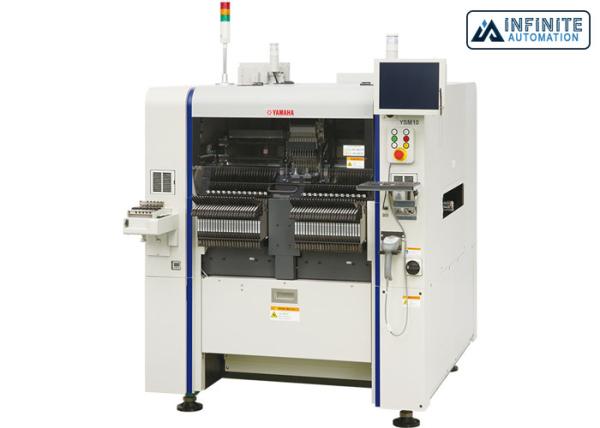

    Compact Modular 46000CPH Yamaha YSM10 SMT Mounter Machine Original And Used

    Ask Lasest Price
    Brand Name : Yamaha
    Model Number : YSM10
    Price : Negotiable
    Payment Terms : 20% deposit - 80% before delivery
    • Product Details
    • Company Profile

    Compact Modular 46000CPH Yamaha YSM10 SMT Mounter Machine Original And Used

    Yamaha YSM10 Compact High-speed Modular SMT Mounter 46,000CPH Original And Used


    Yamaha YSM10 is the YSM series entry model mounter that achieved both the world’s fastest speed and versatility in its class worldwide. Yamaha YSM10 Pick and Place Machine is designed with a rigid and durable machine frame that ensures high accuracy mounting even of tiny 03015㎜ chips. Though a high-speed head, it also works great with tray changer units. This Yamaha YSM Series Mounter HM head is equipped with a scanning camera (FOV□12mm) equivalent to upscale models. This scanning camera handles component heights to 15mm, including sizes up to W55 x L100mm by multi-camera, and so can handle nearly all SMT components. Yamaha YSM10 comes with all types of functions for better operating convenience and maintaining high-quality production.


    Features:

    • Handles a wide range of components from 03015mm (0.3 × 0.15mm) ultra-micro-chips to large parts 55 × 100mm and 15mm in height and needs no head replacement since it uses high-speed general-purpose heads the same as high-end models.
    • By adopting a new-generation servo system from upper-ranked models and utilizing a lightweight and compact universal type head we have speeded up mounting more than 25% compared to conventional models to achieve the world’s fastest mounting speed in its class of 46,000 CPH (chips per hour).
    • A flexible response for different production configurations
    • Multi-Camera with high-speed and high-accuracy parts recognition to sizes exceeding 12mm or heights exceeding 6.5mm.
    • Automatic replacement of spare nozzles and special order nozzles available.
    • Automatic replacement tray supply unit "sATS15"
    • Electric-drive intelligent feeders "SS feeder" and "ZS feeder" are fully compatible with all YS series models.
    • Functions that ensure stable production
    • Automatic recognition optimizer function
    • Blow station for automatic nozzle shaft cleaning
    • Highly stable & reliable pickup system

    Specifications:


    YSM10
    Applicable PCBL 510 x W 460mm - L 50 x W 50mm
    Note : Available in lengths up to L950mm as an option.
    Applicable components03015mm to W55 x L100mm (For parts sizes larger the width 45mm, recognition of parts is divided into sections.), Height 15mm or less
    Note: A multi-camera (option) is required for part heights exceeding 6.5mm or part sizes exceeding 12mm
    Mounting capabilityHM head (10 nozzles) specification: 46,000CPH (under optimum conditions as defined by Yamaha Motor)
    HM 5 head (5 nozzles) specification: 31,000CPH (under optimum conditions as defined by Yamaha Motor)
    Mounting accuracy+/-0.035mm (+/-0.025mm) Cpk 1.0 (3σ)
    (Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
    Number of component typesFixed plate : Max. 96 types (conversion for 8mm tape feeder) Note 1
    Tray: 15 types (maximum when equipped with sATS15, JEDEC)
    Power supply3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
    Air supply source0.45MPa or more, in a clean, dry state
    External dimensionL1,254 x W1,440 x H1,445mm
    WeightApprox. 1,270kg
