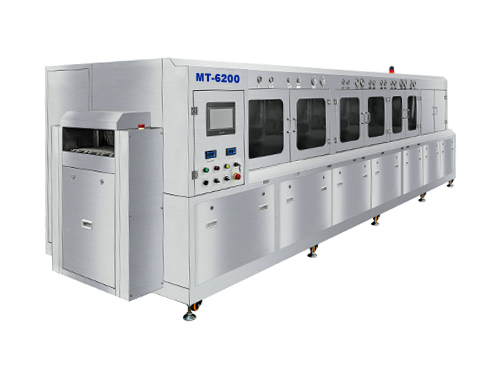

INFINITE™ MT-6200 heavy-duty large batch PCBA online cleaning machine is designed for use in cleaning residual rosin flux on the PCBA surface after SMT patch and THT plug-in process soldering. This machine is suitable for the removal of no-clean flux, water-soluble flux, and solder paste online organic and non-organic pollutants. MT-6200 machine process of cleaning is widely used in automotive electronics, military industry, aviation, aerospace, medical, LED, smart instrument, and other industries, and is suitable for centralized cleaning of large quantities of PCBA. This machine features a large-flow cleaning method that can effectively remove organic and non-organic pollutants on the PCBA surface. MT-6200 cleaning machine operates with a PLC control system with a Chinese and English operation interface. Made with All SUS304 stainless steel body assure machine durability.

Machine features:

1. On-line and designed for large batch PCBA cleaning.

2. The large-flow cleaning method can effectively remove organic and non-organic pollutants on the PCBA surface.

3. Cleaning processes are as follows; pre-cleaning, cleaning, chemical isolation, pre-rinsing, chemical isolation, first rinsing, second rinsing, and final spray rinsing, wind cutting, and infrared hot air drying processes are completed in order.

4. The cleaning fluid is automatically added and discharged; DI water is automatically replenished by overflowing from the back section to the front section to refill the DI water.

5. Up and down spray cleaning method, cleaning fluid, DI water pressure can be adjusted.

6. The spray pressure of the chemical liquid and DI water can reach 80PSI, which can completely penetrate into the bottom gap of PCBA and clean thoroughly.

7. Ultra-precision, multiple nozzle configurations, cleaning pressure and flow; optional liquid and water knife, penetrate the bottom of BGA.

8. Equipped with a rinse resistivity monitoring system, with a measurement range of 0-18MΩ, to detect the ion concentration of rinse DI water.

9. Air knife wind cutting + super long infrared hot air circulation drying system.

10. PCB flat mesh belt conveyor system, stable transmission.

11. PLC control system, Chinese/English operation interface, the program is convenient to set, change, store, and call.

12. All SUS304 stainless steel body, pipes, and parts are durable, resistant to acid, alkali, and other cleaning fluids.

Machine specifications:

MT-6200 specification

Conveyor belt width: 500mm

Mesh belt transmission speed: 100~1500mm/min, 200~400mm/min is recommended

Mesh belt conveyor height: 900±50mm

PCB transfer direction: From left to right

PCB width: 50~500mm

PCB height: 0~100mm

Cleaning liquid tank capacity: 300L

Rinse a tank capacity: 120L

Filtration accuracy: 0.2um

DI water consumption: 600~1000L/Hour

Displacement: 40m³/Hour

Control: PLC

Power/Air: 380VAC, 3Phases, 50/60HZ, 100KW/0.5Mpa

Resistivity test range: 0~18MΩ

Machine size: L6200*W1650*H1650mm

Machine weight: 3000KG
