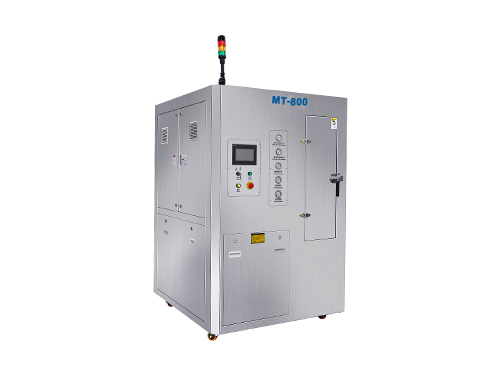

INFINITE™ MT-800 water-based electric open-loop and closed-loop steel mesh cleaning machine is design for cleaning multiple types of stencil used in SMT and PCBA production. This machine is capable of use for SMT solder paste printer stencil, red rubber or glue stencil, copper stencil, resin stencil, misprinted PCB, and PCBA automatic cleaning. With a unique structure of 4 spray rods and 4 air knives, the cleaning, rinsing, drying, and other processes are automatically completed in one machine. When cleaning, the spray bar, air knife, etc. are fixed to ensure the stability and reliability of the equipment and the high precision and high-quality cleaning results. The machines' unique movement mechanism design enables the steel mesh to move back and forth, while the spray rod and air knife are positioned in a fixed manner, making the machine run more stable.

Machine Features:

1. Open-loop and closed-loop, suitable for SMT steel mesh, copper mesh, resin mesh; misprinted PCB; PCBA, and other cleanings.
2. The unique design of the movement mechanism-the steel mesh moves back and forth, and the spray rod and air knife are fixed in a fixed manner, making the machine run more stable.
3. The water-based cleaning fluid is circulated and filtered in real-time to extend the saturation time of the pollutant load, which is suitable for the cleaning of precision steel mesh.
4. Large flow 4 air knife system, hot air drying quickly.
5. The whole body is made of 304 stainless steel, which is resistant to acid and alkali corrosion, strong, and durable.
6. One-button operation, washing, rinsing, and drying are automatically completed at one time according to the set program.
7. The cleaning room is equipped with a visual window, and the cleaning process is clear at a glance.
8. At the end of the cleaning, compressed air is used to recover the residual chemical liquid in the pipeline and pump, effectively saving 50% of the cleaning solution.
9. Color touch screen, PCL control, run according to the program; can set the solution temperature, cleaning time, rinsing times/time, rinsing temperature, drying time, drying temperature, resistivity monitoring, and other parameters.
10. Integrate the highest quality electric and pneumatic components from Germany, the United States, and Japan, which are durable, safe, and reliable.

Machine specifications:

MT-800 specification

Maximum screen size: L750 x W750 x H40(mm)

Tank capacity: 60x2pcs

Cleaning time: 3~6min

Rinsing time: 1~3min,

Drying time: 3~6min

Cleaning fluid: Water-based cleaning fluid

Rinsing liquid: DI water

Drying method: High-pressure hot air

Liquid heating temperature: 0~60℃

Drying temperature: 0~90℃

Cleaning heating power: 9KW

Rinsing heating power: 9KW

Dry heating power: 6KW

Washing/rinsing filter: 1um

Power supply: AC380V, 3Phases, 50/60HZ, 33KW

Machine size: L1300xW1400xH1950 (mm)

Weight: 720KG
