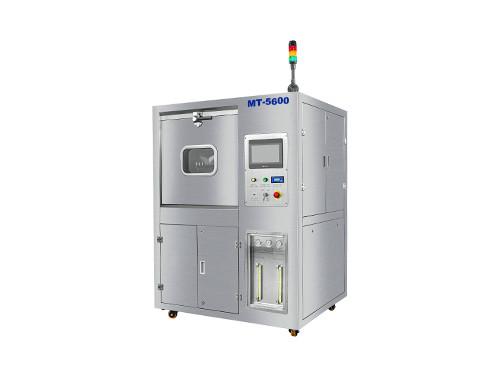

INFINITE™ MT-5600 small-batch multiple DI water rinsing off-line PCBA cleaning machine is designed for cleaning a small batch of PCBA boards off-line. MT-5600 PCBA offline cleaning machine is an integrated offline cleaning machine with a compact structure, energy-saving, and environmental protection, batch cleaning. This machine can effectively clean residual flux and solder paste on the PCBA surface after SMT patch and THT plug-in soldering. MT-5600 cleaning machine is the best off-line equipment to remove organic and inorganic pollutants. This cleaning machine is widely used in automotive electronics, military, aviation, aerospace, medical, LED, smart meters, and other industries. Simple Chinese operation interface, easy setting of cleaning process parameters, and cleaning procedures are programmable.

Machine features:

1. Comprehensive cleaning, which can thoroughly clean the residual rosin flux, water-soluble flux, no-clean flux, solder paste, and other organic and inorganic contaminants on the PCB surface after soldering.
2. It is suitable for the cleaning of small batches and multiple varieties of PCBA. The double-layer cleaning basket can load PCBA in layers; the size is 610mm(L) x560mm(W) x100mm(H), a total of 2 layers.
3. The cleaning room is equipped with a visual window, and the cleaning process can be observed.
4. Simple Chinese operation interface, a rapid setting of cleaning process parameters, cleaning procedures can be stored; hierarchical management passwords can be set according to the administrator's authority.
5. The washing liquid heating temperature control system can be heated to a suitable temperature according to the chemical characteristics of the washing liquid, which improves the cleaning efficiency and shortens the cleaning time.
6. The built-in filter device can realize the circulation of the solution and reduce the amount of solution. The compressed air blowing method is adopted at the end of the cleaning: the residual liquid in the pipeline and pump is recovered, which can effectively save 50 % of the cleaning solution.
7. With real-time resistivity monitoring system, with a conductivity control range of 0~18MΩ.
8. Many times of DI water rinsing, high standards of cleanliness, ion pollution in line with IPC-610D Class I standards.
9. 304 stainless steel structure, exquisite workmanship, sturdy and durable, corrosion-resistant to acid and alkali cleaning solutions.

Machine specifications:

MT-5600 specification

Basket size: L610 x W560 x H100 (mm) x 2 layers

Spray tank capacity: 18L

Original tank capacity: 30L

Diluent tank capacity: 60L

Cleaning time: 5~20min

Rinsing time: 1~2min/time

Rinsing times: 1~99 times

Drying time: 10~30min

Liquid heating temperature: Room temperature~60℃

PCB drying temperature: Room temperature~99℃

Resistivity test range: 0~18MΩ

Liquid circulation filtration: 0.2um

Rinse and discharge filter system: 0.2um

Dry air filtration: 10um

DI water supply: 30~65L/Min

DI water pressure: 0.2~0.4Mpa

Exhaust outlet size: Φ76xH50(mm)

Power/Air: AC380V 3P, 50/60HZ, 30KW/0.5Mpa, 200~400L/Min

Machine size: L1300*W1200*H1850(mm)

Machine weight: 600KG
