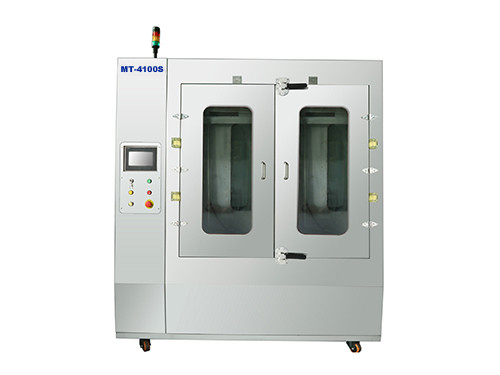

Modular controller automatic screen stripping machine MT-4100S is equipped with a high-quality electric hydraulic pump that provides high-pressure jet flushing and film release. MT-4100S automatic screen stripping machine is used to automatically remove the photosensitive film after the screen production process and removes previous film images from the screen. This process is the technology applied to clean the screen and erase the previous layout or screen design and re- blank the screen for reuse. This makes the screen reusable and provides cost-saving as an effect.

MT-4100S machine extracts the film, releases liquid, and automatically rinses the screen to be removed. This process softened and releases the screen's photosensitive film. It can also be pre-soaked and be removed from the machine. The machine adopts front and rear double spray bars, uniform spraying, spray pressure, and flow can be adjusted to achieve complete film removal.

Features:

1. High-quality electric hydraulic pump provides high-pressure jet flushing and film release.

2. The whole structure is made of stainless steel, which is resistant to acid and alkali corrosion and durable.

3. One-button operation, developing, and drying are automatically completed at one time according to the set program.

4. The ejection pressure of the film release is adjustable, the film release speed is fast and the effect is good.

5. Equipped with an anti-dry pumping control system to automatically protect the hydraulic pump when the water volume is insufficient.

6. The machine is completely airtight and sprays the film.

7. Circulating filtration of the stripping liquid can be reused, saving water and reducing emissions.

8. Modular controller, easy to repair and maintain.

9. It can also be used to remove ghost images on the screen.

Machine specifications:

MT-4100S specification

Maximum screen size: L1000xW1000xH40(mm)
Tank capacity: 120L
Stripping time: 1~3min
Drying time: 1~2min
Airflow volume: 800~1000L/min
Gas source: 0.5~0.7Mpa
Exhaust port size: Φ125 × H30 (mm)
Filtering system: 20um
Gas source: 0.5~0.7Mpa
Power supply: AC380V, 50HZ, 4KW
Machine size: L1750xW1550xH 2000(mm)
Machine weight: 760KG
