    Fully Reconditioned I-Pulse PCB SMT Machine M2-Plus SMT Chip Mounter

    Ask Lasest Price
    Brand Name : I-Pulse
    Model Number : M2-Plus
    Payment Terms : 20% deposit - 80% before delivery
    • Product Details
    • Company Profile

    Fully Reconditioned I-Pulse PCB SMT Machine M2-Plus SMT Chip Mounter

    Infinite Automation Co., Ltd. is a reputable company distributing pre-owned and fully reconditioned SMT machines. Among our latest SMT machine offerings is the pre-owned and fully reconditioned I-Pulse M2-Plus Chip shooter and multi-function IC mounter. This I-Pulse SMT machine is operation-ready and gone through a meticulous recondition and quality check process. I-Pulse M2-plus is a super mid-range machine that integrates the speed of a chip shooter and the multi-function of an IC mounter in one unit. I-Pulse M2 SMT mounter is an enhanced model of the standard mid-range M1, and M1 plus models. I-Pulse M2 series chip mounter has achieved great improvement in its speed and accuracy.


    I-PULSE Chip Mounter: M2-Plus


    Features:

    • M2 model series is a super mid-range machine that integrates the speed of a chip shooter and the multi-function of an IC mounter in one unit.
    • Further enhanced the standard mid-range model M1 / M1plus, the M2 has achieved great improvement in its speed, accuracy.
    • 7 High specifications support speed

    Specifications:


    I-Pulse- M2 Plus Specification
    Board sizeL50xW50mm – L460 xW410mm
    Board thickness0.5mm-2.0mm
    Flow directionLeft to right
    Conveyor speedMax. 420mm/sec, speed variable, soft stop fuction
    Placement speed A (NB1)0.13 sec/CHIP, 0.38 sec/TSOP32
    Placement speed B (NB2)0.54 sec/QFP100 (when using the optional fixed camera FCO5)
    Placement accuracy A (u+3o)CHIP +0.05mm
    Placement accuracy B (u+30c)QFP +0.03mm (when using the optional fixed camera FCO3)
    Placement angle+180’, resolution 0.015
    Z-axis control6-head independent servo motors, resolution 0.006mm
    Component height15mm (Preplaced components max. 10.5mm)
    Components applicable0603 (option) – SOP, PLCC, QFP, BGA, CSP, connector, and odd-form components
    Component carriers8-56mm tape, stick, tray
    Drawback checkVacuum check and vision check
    Multi language displayJapanese, Chinese, Korean, and English
    Board locating methodBoard edge or tooling hole (option), front reference
    Component types120 types (8mm tape conversion)
    Board transfer height900+20mm
    Dimensions, weightL1,750XD1,530XH1, 510mm, approx. 1,950Kg
    Power, consumption, capacity3phase 200V (Option: 208, 220, 240, 380, 400, 415, 440V) +10% 50/60Hz, 4.0KVA, 6.0KVA
    Air and consumption0.5MPa, 692/min A.N.R.

    Images:

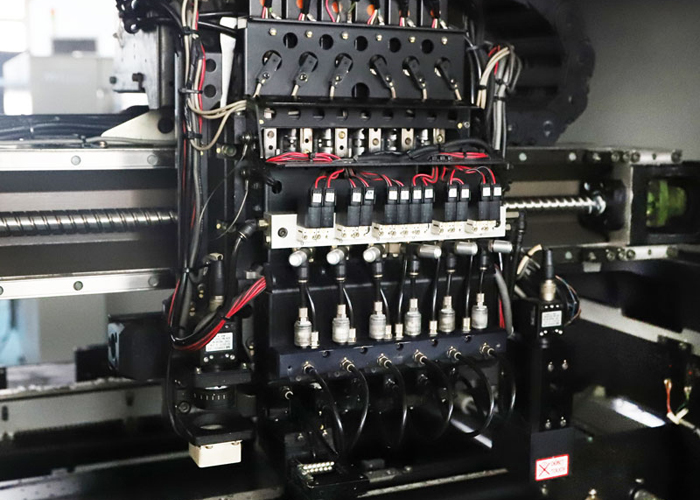

    I-PULSE Chip Mounter: M2-Plus image 2

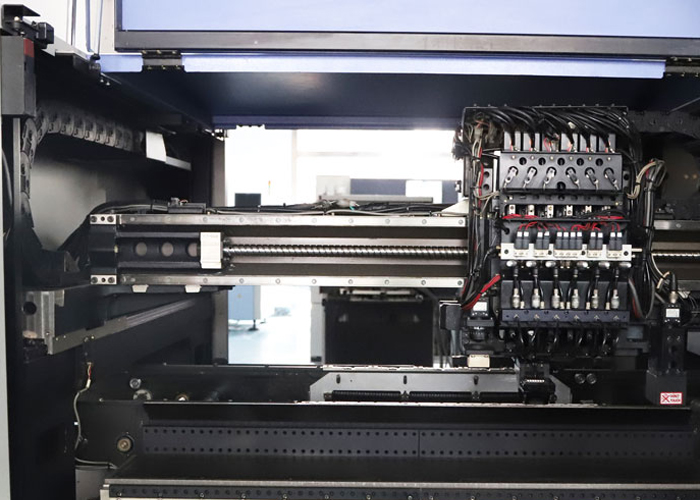

    I-PULSE Chip Mounter: M2-Plus image 3

    I-PULSE Chip Mounter: M2-Plus image 4
