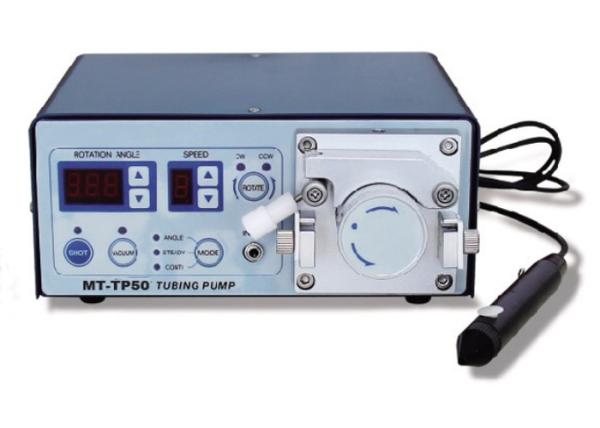

Introducing INFINITE™ MT-TP50 Peristaltic Dispenser Machine, a
Peristaltic positive displacement dispensing machine used for
pumping a variety of liquid materials. A peristaltic pump is a type of positive displacement dispensing
machine used for pumping a variety of materials. The fluid is
contained within a flexible tube fitted inside a circular pump
case. The special rotor turns and compresses the flexible tube thus
forcing the fluid to be pumped to move through the tube. Digital
time allows you to dispense accurate and repeated amounts of fluid
every time. The pumped fluid contacts only the inside surface of
the tubing. There are no other valves, O-rings, seals or packing's
to worry about in the peristaltic pump. Therefore, the only
compatibility to worry about in a peristaltic pump is the tubes for
the fluid being pumped.
Using the wear-resistant rotor mechanism effectively prolongs the
service life of the tube and saves production costs. This machine
does not need gas. Pressure, installation is very simple,
controlled by a manual switch, convenient and quick operation. This
machine is suitable for all kinds of quick-drying glue in precise
and small quantities.
Features
- Used for Instant adhesive, Electrolyte. Printing ink etc.
- Turn on the power and for usage without the air-pressure
- Ultra-Low maintenance design
- Designed for a wide range of applications
Function description and product characteristics
(1) Control mode: electronic pipeline compression mode;
(2) Function mode: manual/automatic mode;
(3) Dispensing volume setting: 09.999s;
(4) Respiration volume setting: 0-9.999s;
(5) Minimum dispensing volume: 0.0001ml;
(6) Gluing speed (rotating speed): 0-200rev/min
(7) Repeatability: +/- 0.005%;
(8) Special function: automatic reversal function to prevent glue
leakage;
(9) Input and output signal: input one without contact or with
contact; output a little glue end, standard level Signal output;
(10) Power supply: 220-240V, 50Hz, 30W
(11) Weight: 3.5kg.
